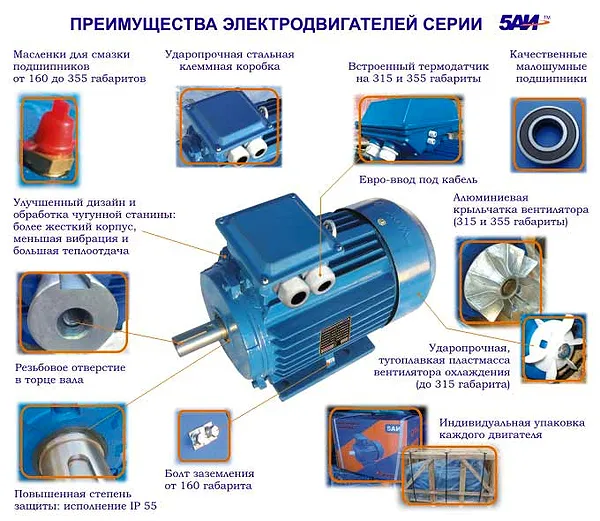

Общепромышленные электродвигатели серии 5АИ
 |
|
+7 (343) 361-89-99
Описание и назначение электродвигателей 5АИ
Электродвигатели 5АИ™ асинхронные унифицированной серии с короткозамкнутым ротором, закрытого исполнения предназначены для продолжительного режима работы S1 по ГОСТ
183—74 от сети переменного тока частотой 50 Гц, напряжением 220/380/660 В.
Условия эксплуатации:
Вид климатического исполнения У1, У2, У3 по ГОСТ 15150 — 69.
Техническое описание:
- В зависимости от способа монтажа двигатели изготавливаются следующих форм исполнений: IM 1001, IM2001, IM3011 по ГОСТ 2479—79;
- Степень защиты двигателей IP55 по ГОСТ 17494—87;
- Способ охлаждения 1С 0151 по ГОСТ 20459—87;
- Класс вибрации двигателей 2,8 мм/с по ГОСТ 20815—93;
- Уровень звука двигателей в режиме холостого хода соответствует 2 классу ГОСТ 16372—93;
- Система изоляции двигателей класса нагревостойкости «F» по ГОСТ 8865—93.
Модификации и технические характеристики электродвигателей 5АИ
|
Тип двигателя |
Ном. мощность, |
Синхронная частота |
Напряжение |
Ном. ток, |
кпд,% |
Cos ф |
Мmax/Мн |
Мп/Мн |
Iп/Iн |
Вес, кг |
|
5АИ56А2 |
0.18 |
3000 |
220/380 |
0.96/0.55 |
62 |
0.8 |
2.2 |
2.2 |
5.5 |
4.71 |
|
5АИ56А4 |
0.12 |
1500 |
220/380 |
0.94/0.54 |
53 |
0.63 |
2.2 |
2.1 |
4.4 |
4.9 |
|
5АИ56В2 |
0.25 |
3000 |
220/380 |
1.25/0.72 |
65 |
0.81 |
2.2 |
2.2 |
5.5 |
4.5 |
|
5АИ56В4 |
0.18 |
1500 |
220/380 |
1.26/0.73 |
56 |
0.67 |
2.2 |
2.1 |
4.4 |
4.7 |
|
5АИ63А2 |
0.37 |
3000 |
220/380 |
1.71/0.99 |
70 |
0.81 |
2.2 |
2.2 |
6.1 |
9 |
|
5АИ63А4 |
0.25 |
1500 |
220/380 |
1.37/0.79 |
65 |
0.74 |
2.2 |
2.1 |
5.2 |
9 |
|
5АИ63А6 |
0.18 |
1000 |
220/380 |
1.28/0.74 |
56 |
0.66 |
2 |
1.9 |
4 |
9.5 |
|
5АИ63В2 |
0.55 |
3000 |
220/380 |
2.4/1.4 |
73 |
0.82 |
2.3 |
2.2 |
6.1 |
9.5 |
|
5АИ63В4 |
0.37 |
1500 |
220/380 |
1.93/1.12 |
67 |
0.75 |
2.2 |
2.1 |
5.2 |
9.5 |
|
5АИ63В6 |
0.25 |
1000 |
220/380 |
1.5/0.94 |
59 |
0.68 |
2 |
1.9 |
4 |
10 |
|
5АИ71А2 |
0.75 |
3000 |
220/380 |
3/1.77 |
71 |
0.9 |
2.3 |
2.2 |
6.1 |
9.5 |
|
5АИ71А4 |
0.55 |
1500 |
220/380 |
2.89/1.67 |
70.5 |
0.71 |
2.3 |
2.4 |
5.2 |
9.6 |
|
5АИ71А6 |
0.37 |
1000 |
220/380 |
2.1/1.2 |
67 |
0.69 |
2 |
1.9 |
4.7 |
11.3 |
|
5АИ71В2 |
1.1 |
3000 |
220/380 |
4.3/2.5 |
73 |
0.91 |
2.3 |
2.2 |
6.1 |
11.7 |
|
5АИ71В4 |
0.75 |
1500 |
220/380 |
3.7/2.18 |
72.5 |
0.72 |
2.3 |
2.4 |
6 |
11.6 |
|
5АИ71В6 |
0.55 |
1000 |
220/380 |
2.99/1.73 |
69 |
0.7 |
2.1 |
1.9 |
4.7 |
12.3 |
|
5АИ71В8 |
0.25 |
750 |
220/380 |
2.1/1.27 |
50 |
0.6 |
1.9 |
1.8 |
3.3 |
11.7 |
|
5АИ80А2 |
1.5 |
3000 |
220/380 |
5.9/3.4 |
79 |
0.84 |
2.3 |
2.2 |
7 |
15.5 |
|
5АИ80А4 |
1.1 |
1500 |
220/380 |
5/2.9 |
75 |
0.77 |
2.3 |
2.3 |
6 |
15.7 |
|
5АИ80А6 |
0.75 |
1000 |
220/380 |
3.9/2.3 |
69 |
0.72 |
2.1 |
2 |
5.5 |
15.7 |
|
5АИ80А8 |
0.37 |
750 |
220/380 |
2.5/1.5 |
62 |
0.61 |
1.9 |
1.8 |
4 |
17 |
|
5АИ80В2 |
2.2 |
3000 |
220/380 |
8.4/4.8 |
81 |
0.85 |
2.3 |
2.2 |
7 |
19.5 |
|
5АИ80В4 |
1.5 |
1500 |
220/380 |
6.4/3.7 |
78 |
0.79 |
2.3 |
2.3 |
6 |
18 |
|
5АИ80В6 |
1.1 |
1000 |
220/380 |
5.5/3.2 |
72 |
0.73 |
2.1 |
2 |
5.5 |
19.5 |
|
5АИ80В8 |
0.55 |
750 |
220/380 |
3.7/2.17 |
63 |
0.61 |
2 |
1.8 |
4 |
22 |
|
5AИ90L2 |
3 |
3000 |
220/380 |
10.7/6.2 |
83 |
0.89 |
2.3 |
2.2 |
7.5 |
23.5 |
|
5AИ90L4 |
2.2 |
1500 |
220/380 |
9.1/5.3 |
78 |
0.82 |
2.3 |
2.3 |
7 |
33 |
|
5AИ90L6 |
1.5 |
1000 |
220/380 |
7/4.1 |
75 |
0.75 |
2.1 |
2 |
5.5 |
24.5 |
|
5AИ90LA8 |
0.75 |
750 |
220/380 |
3.6/2.1 |
75 |
0.73 |
2 |
1.8 |
4 |
25.5 |
|
5AИ90LB8 |
1.1 |
750 |
220/380 |
5.2/3 |
77 |
0.72 |
2 |
1.8 |
4 |
25.5 |
|
5AИ100S2 |
4 |
3000 |
220/380 |
14/8.1 |
84 |
0.89 |
2.3 |
2.2 |
7.5 |
32.5 |
|
5AИ100S4 |
3 |
1500 |
220/380 |
11.7/6.8 |
82 |
0.82 |
2.3 |
2.3 |
7 |
34 |
|
5AИ100L2 |
5.5 |
3000 |
220/380 |
19.1/11 |
85 |
0.89 |
2.3 |
2.2 |
7.5 |
36.5 |
|
5АИ100L4 |
4 |
1500 |
220/380 |
15.2/8.8 |
82 |
0.84 |
2.3 |
2.3 |
7 |
36.5 |
|
5AИ100L6 |
2.2 |
1000 |
220/380 |
10/5.6 |
76 |
0.76 |
2.1 |
2.1 |
6.5 |
32.5 |
|
5АИ100L8 |
1.5 |
750 |
220/380 |
7.9/4.6 |
74 |
0.67 |
2 |
1.8 |
5 |
36.5 |
|
5АИ112М2 |
7.5 |
3000 |
220/380 |
26/15.07 |
86 |
0.88 |
2.3 |
2.2 |
7.5 |
45 |
|
5АИ112М4 |
5.5 |
1500 |
220/380 |
20.2/11.7 |
86 |
0.83 |
2.3 |
2.3 |
7 |
67 |
|
5АИ112МА6 |
3 |
1000 |
220/380 |
12.6/7.3 |
81 |
0.77 |
2.1 |
2.1 |
6.5 |
47.5 |
|
5АИ112МА8 |
2.2 |
750 |
220/380 |
11/6.3 |
76 |
0.69 |
2 |
1.8 |
6 |
42.5 |
|
5АИ112МВ6 |
4 |
1000 |
220/380 |
16.6/9.6 |
81 |
0.78 |
2.1 |
2.1 |
6.5 |
52 |
|
5АИ112МВ8 |
3 |
750 |
220/380 |
14.0/8.0 |
80 |
0.7 |
2 |
1.8 |
6 |
50.5 |
|
5AИ132S4 |
7.5 |
1500 |
220/380 |
27/15.6 |
87.2 |
0.84 |
2.3 |
2.3 |
7 |
75 |
|
5AИ132S6 |
5.5 |
1000 |
220/380 |
22.3/12.9 |
84 |
0.77 |
2.1 |
2.1 |
6.5 |
71 |
|
5AИ132S8 |
4 |
750 |
220/380 |
18.5/10.5 |
83 |
0.7 |
2 |
1.9 |
6 |
63 |
|
5АИ132М2 |
11 |
3000 |
220/380 |
36.4/21.1 |
88 |
0.9 |
2.3 |
2.2 |
7.5 |
118 |
|
5АИ132М4 |
11 |
1500 |
220/380 |
37.1/21.4 |
88.5 |
0.88 |
2.3 |
2.2 |
7 |
85 |
|
5АИ132М6 |
7.5 |
1000 |
220/380 |
28.6/16.5 |
85.5 |
0.81 |
2.1 |
2 |
6.5 |
88 |
|
5АИ132М8 |
5.5 |
750 |
220/380 |
21/13.6 |
85.5 |
0.81 |
2 |
2 |
6 |
88 |
|
5AИ160S2 |
15 |
3000 |
380/660 |
28.8/16.6 |
89 |
0.89 |
2.3 |
2.2 |
7.5 |
118 |
|
5AИ160S4 |
15 |
1500 |
380/660 |
30.1/17.4 |
89 |
0.85 |
2.3 |
2.2 |
7.5 |
135 |
|
5AИ160S6 |
11 |
1000 |
380/660 |
24.2/14 |
87.5 |
0.79 |
2.1 |
2 |
6.5 |
134 |
|
5AИ160S8 |
7.5 |
750 |
380/660 |
17.8/10.3 |
85.5 |
0.75 |
2 |
2 |
6 |
132 |
|
5АИ160М2 |
18.5 |
3000 |
380/660 |
34.7/20 |
90 |
0.9 |
2.3 |
2.2 |
7.5 |
141 |
|
5АИ160М4 |
18.5 |
1500 |
380/660 |
36/20.7 |
90.5 |
0.86 |
2.3 |
2.2 |
7.5 |
150 |
|
5АИ160М6 |
15 |
1000 |
380/660 |
33/19 |
89 |
0.78 |
2.1 |
2.1 |
7 |
154 |
|
5АИ160М8 |
11 |
750 |
380/660 |
24.9/14.3 |
87 |
0.77 |
2 |
2 |
6.6 |
152 |
|
5AИ180S2 |
22 |
3000 |
380/660 |
41/23.7 |
90.5 |
0.9 |
2.3 |
2 |
7.5 |
170 |
|
5AИ180S4 |
22 |
1500 |
380/660 |
43.2/24.9 |
91 |
0.85 |
2.3 |
2.2 |
7.5 |
175 |
|
5АИ180М2 |
30 |
3000 |
380/660 |
55/31.9 |
91.4 |
0.9 |
2.3 |
2 |
7.5 |
203 |
|
5АИ180М4 |
30 |
1500 |
380/660 |
56.3/32.4 |
91.4 |
0.86 |
2.3 |
2.2 |
7.2 |
201 |
|
5АИ180М6 |
18.5 |
1000 |
380/660 |
36.9/21.2 |
89 |
0.82 |
2.1 |
2.1 |
7 |
120 |
|
5АИ180М8 |
15 |
750 |
380/660 |
31.3/18.1 |
88 |
0.78 |
2 |
2 |
6.6 |
175 |
|
5АИ200М2 |
37 |
3000 |
380/660 |
67.9/39.2 |
92 |
0.9 |
2.3 |
2 |
7.5 |
246 |
|
5АИ200М4 |
37 |
1500 |
380/660 |
68.3/41 |
91 |
0.92 |
2.3 |
2.2 |
7.2 |
248 |
|
5АИ200М6 |
22 |
1000 |
380/660 |
44.7/25.8 |
90 |
0.83 |
2.1 |
2.1 |
7 |
233 |
|
5АИ200М8 |
18.5 |
750 |
380/660 |
39/22.5 |
89 |
0.81 |
2 |
1.9 |
6.6 |
235 |
|
5AИ200L2 |
45 |
3000 |
380/660 |
82.3/47.4 |
92.3 |
0.9 |
2.3 |
2 |
7.5 |
282 |
|
5AИ200L4 |
45 |
1500 |
380/660 |
85/48 |
92.6 |
0.87 |
2.3 |
2.2 |
7.2 |
280 |
|
5AИ200L6 |
30 |
1000 |
380/660 |
59.6/34.35 |
90 |
0.85 |
2.1 |
2 |
7 |
228 |
|
5AИ200L8 |
22 |
750 |
380/660 |
45.8/26.4 |
90 |
0.81 |
2 |
1.9 |
6.6 |
250 |
|
5АИ225М2 |
55 |
3000 |
380/660 |
100/58 |
92.5 |
0.91 |
2.3 |
2 |
7.5 |
318 |
|
5АИ225М4 |
55 |
1500 |
380/660 |
101.8/58.8 |
92 |
0.89 |
2.3 |
2.2 |
7.2 |
331 |
|
5АИ225М6 |
37 |
1000 |
380/660 |
72.7/42 |
91 |
0.85 |
2.1 |
2.1 |
7 |
290 |
|
5АИ225М8 |
30 |
750 |
380/660 |
62.2/35.9 |
90.5 |
0.81 |
2 |
1.9 |
6.6 |
307 |
|
5AИ250S2 |
75 |
3000 |
380/660 |
135/78 |
92.5 |
0.91 |
2.3 |
2 |
7.5 |
395 |
|
5AИ250S4 |
75 |
1500 |
380/660 |
141.1/81.2 |
94 |
0.86 |
2.3 |
2.2 |
7.2 |
400 |
|
5AИ250S6 |
45 |
1000 |
380/660 |
85/49.5 |
92.5 |
0.86 |
2 |
2.1 |
7 |
365 |
|
5AИ250S8 |
37 |
750 |
380/660 |
78.3/45 |
92 |
0.78 |
2 |
1.9 |
6.6 |
390 |
|
5АИ250М2 |
90 |
3000 |
380/660 |
161.1/93.1 |
93 |
0.91 |
2.3 |
2 |
7.5 |
410 |
|
5АИ250М4 |
90 |
1500 |
380/660 |
167.2/96.3 |
94 |
0.87 |
2.3 |
2.2 |
7.2 |
430 |
|
5АИ250М6 |
55 |
1000 |
380/660 |
105/60.5 |
92.5 |
0.86 |
2 |
2.1 |
7 |
400 |
|
5АИ250М8 |
45 |
750 |
380/660 |
93.7/54 |
92.5 |
0.79 |
2 |
1.8 |
6.6 |
410 |
|
5AИ280S2 |
110 |
3000 |
380/660 |
194.3/34 |
93.5 |
0.9 |
2.2 |
1.8 |
7.1 |
520 |
|
5AИ280S4 |
110 |
1500 |
380/660 |
202/116 |
95.1 |
0.87 |
2.2 |
2.1 |
6.9 |
590 |
|
5AИ280S6 |
75 |
1000 |
380/660 |
140.3/80.8 |
94.5 |
0.86 |
2 |
2 |
7 |
594 |
|
5AИ280S8 |
55 |
750 |
380/660 |
108.9/63 |
93.6 |
0.82 |
2 |
1.8 |
6.6 |
574 |
|
5АИ280М2 |
132 |
3000 |
380/660 |
230.7/132.7 |
94.5 |
0.92 |
2.2 |
1.8 |
7.1 |
590 |
|
5АИ280М4 |
132 |
1500 |
380/660 |
235.2/135.6 |
95.8 |
0.89 |
2.2 |
2.1 |
6.9 |
664 |
|
5АИ280М6 |
90 |
1000 |
380/660 |
170.2/98.5 |
94.5 |
0.85 |
2 |
2 |
7 |
584 |
|
5АИ280М8 |
75 |
750 |
380/660 |
147.8/86 |
94 |
0.82 |
2 |
1.8 |
6.6 |
654 |
|
5AИ315S2 |
160 |
3000 |
380/660 |
279/161 |
94.6 |
0.92 |
2.2 |
1.8 |
7.1 |
1024 |
|
5AИ315S4 |
160 |
1500 |
380/660 |
287.8/166.7 |
94.9 |
0.89 |
2.2 |
2.1 |
6.9 |
1000 |
|
5АИ315S6 |
110 |
1000 |
380/660 |
206/118 |
94 |
0.86 |
2 |
2 |
6.7 |
1045 |
|
5AИ315S8 |
90 |
750 |
380/660 |
178/101.2 |
93.8 |
0.83 |
2 |
1.8 |
6.6 |
1050 |
|
5АИ315М2 |
200 |
3000 |
380/660 |
348/200.8 |
94.8 |
0.92 |
2.2 |
1.8 |
7.1 |
1082 |
|
5АИ315М4 |
200 |
1500 |
380/660 |
359.4/207.1 |
95 |
0.89 |
2.2 |
2.1 |
6.9 |
1128 |
|
5АИ315М6 |
132 |
1000 |
380/660 |
244/141 |
94.2 |
0.87 |
2 |
2 |
6.7 |
1094 |
|
5АИ315М8 |
110 |
750 |
380/660 |
217/124.9 |
94 |
0.82 |
2 |
1.8 |
6.4 |
1132 |
|
5АИ315М10 |
75 |
600 |
380/660 |
165.1/95.4 |
92 |
0,75 |
2 |
1.2 |
5 |
1050 |
|
5AИ355S2 |
250 |
3000 |
380/660 |
- |
- |
- |
- |
- |
- |
1500 |
|
5AИ355S4 |
250 |
1500 |
380/660 |
440/253.7 |
95.3 |
0.9 |
2.2 |
2.1 |
6.9 |
1546 |
|
5AИ355S6 |
160 |
1000 |
380/660 |
287/165.5 |
94.5 |
0.88 |
2 |
1.9 |
6.7 |
1620 |
|
5AИ355S8 |
132 |
750 |
380/660 |
255.3/150.4 |
93.7 |
0.82 |
2 |
1.8 |
6.4 |
1564 |
|
5АИ355М2 |
315 |
3000 |
380/660 |
- |
- |
- |
- |
- |
- |
1560 |
|
5АИ355М4 |
315 |
1500 |
380/660 |
556/321 |
95.6 |
0.9 |
2.2 |
2.1 |
6.9 |
1862 |
|
5АИ355М6 |
200 |
1000 |
380/660 |
356.4/205.8 |
94.7 |
0.88 |
2 |
1.9 |
6.7 |
1748 |
|
5АИ355М8 |
160 |
750 |
380/660 |
307.2/177.4 |
94.2 |
0.82 |
2 |
1.8 |
6.4 |
1634 |
|
5АИ355М10 |
110 |
600 |
380/660 |
230/133 |
93.2 |
0.78 |
2 |
1.3 |
6 |
1548 |
|
5АИ355МLA6 |
250 |
1000 |
380/660 |
467.9/270.2 |
94.5 |
0.86 |
2 |
1.9 |
7 |
1880 |
